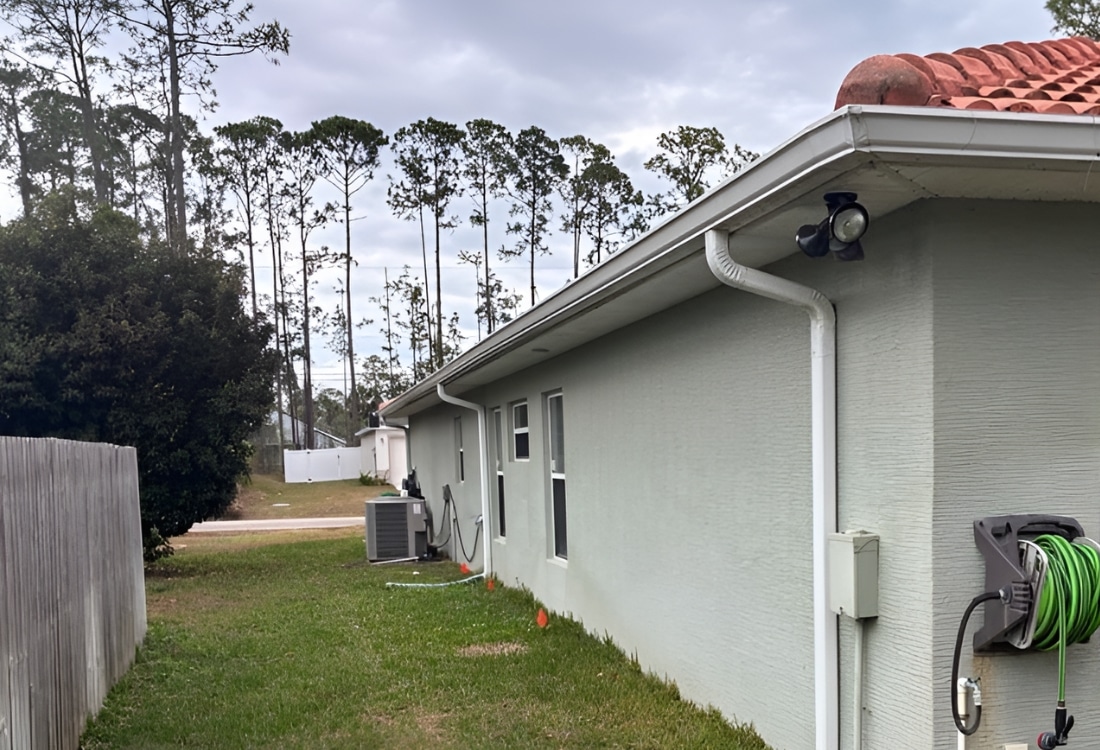

The Problem: Cracks Appearing on the West Side of the Home

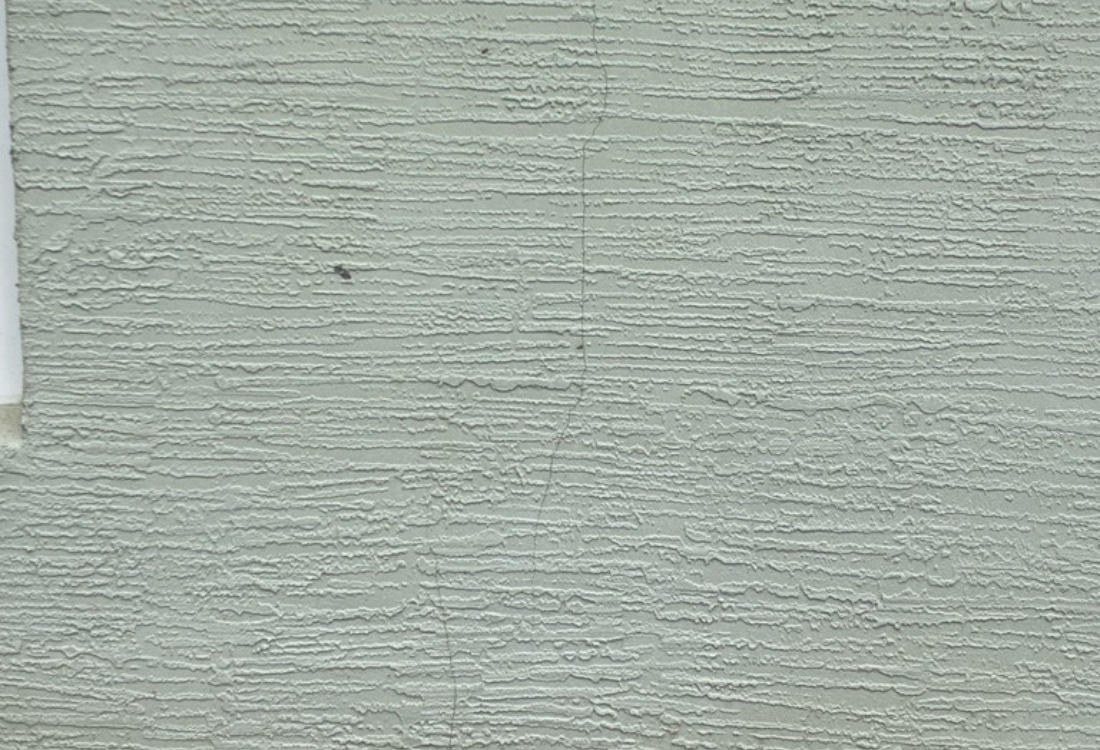

Daniel King had been watching cracks develop along the west side of his Palm Coast home. What started as hairline lines in the stucco had grown into visible vertical and diagonal cracks running across multiple sections of the exterior wall.
Inside, a crack had appeared along the ceiling, running horizontally in a way that told him something more serious was happening beneath the floor. The cracking was concentrated entirely on the west side, and it was getting worse, not better.
Daniel reached out to LUX Foundation Solutions to find out what was causing it and whether the movement had stopped or was still active.
Our Assessment: Active Foundation Settlement on Sandy Soil
When our team arrived and began the inspection, the findings were consistent with what we typically see on slab homes along the Florida coast. Palm Coast sits on predominantly loose, sandy fill soil that compresses unevenly over time, especially along exterior walls, where moisture fluctuations are greatest.
What the inspection confirmed:
- Differential foundation settlement on the west side, with the slab dropping at multiple points along the wall.
- Vertical and diagonal cracking in exterior stucco is consistent with downward movement of the footing.
- Interior ceiling cracking reflects stress transferred upward from the settling slab.
- Soil conditions beneath the footing had shifted, and the soil is no longer capable of supporting the structure’s load.
- Active movement: the crack pattern showed ongoing settlement, not old, stable damage.
In our experience, one thing we always check on Palm Coast jobs is whether the cracking is uniform across the wall or concentrated at specific points. Concentrated cracking at specific intervals along one wall, as we found at Daniel’s home, indicates that the footing is dropping at those exact locations, which directly maps to where the piers need to go.
LUX recommended six standard duty push piers along the west side, positioned per the engineered layout to address each settlement point identified during the inspection.
The Solution: 6 Standard Duty Push Piers Installation in Competent Soil
LUX installed six standard-duty push piers along the west side of Daniel’s Palm Coast home, in accordance with final engineering specifications and local Flagler County building regulations. The installation was fully permitted, and engineering documentation was provided.
Here is how the repair was completed:

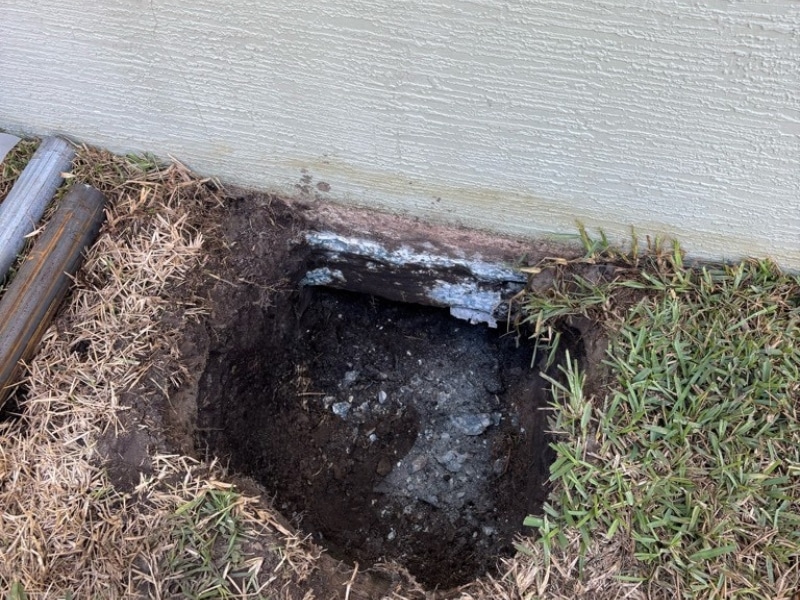

Step 1: Excavation at Each Pier Location
The team excavated at each of the six pier locations along the west foundation wall, exposing the footings. In Palm Coast, we often find that the top layer of soil looks stable at grade but becomes increasingly loose or saturated as you dig deeper, which is exactly why we excavate to fully expose the footing before placing any hardware. Rushing this step leads to bracket misalignment and compromised load transfer.

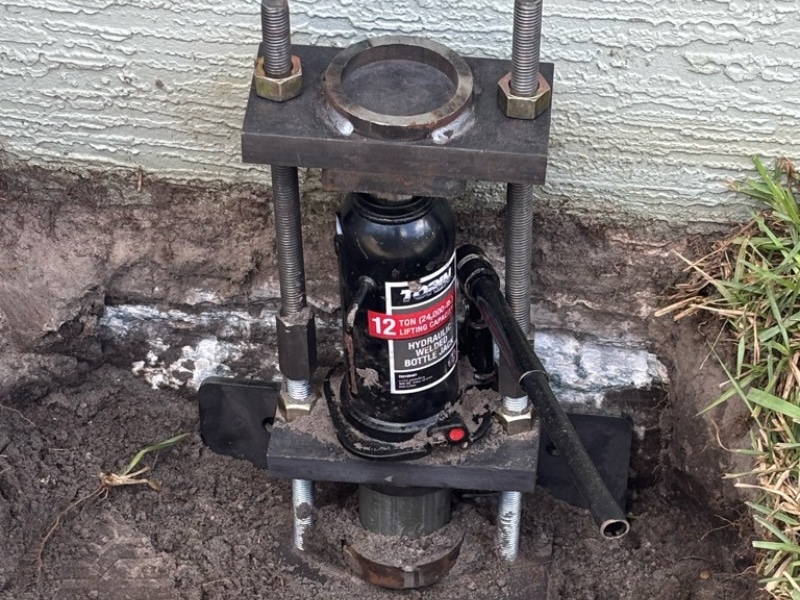

Step 2: Pier Installation and Load Transfer
Each pier shaft was hydraulically driven through the bracket and past the unstable sandy soil until it reached the load-bearing strata. We monitor driving resistance pier by pier to confirm when we have hit the soil bearing capacity required by the engineering specifications.
Once all six piers reached capacity, the foundation’s weight was transferred onto the pier system, and a corrective lift was attempted. Stabilization was the primary goal; any lift achieved is a benefit.
Learn more about our push pier installation process and how it works.

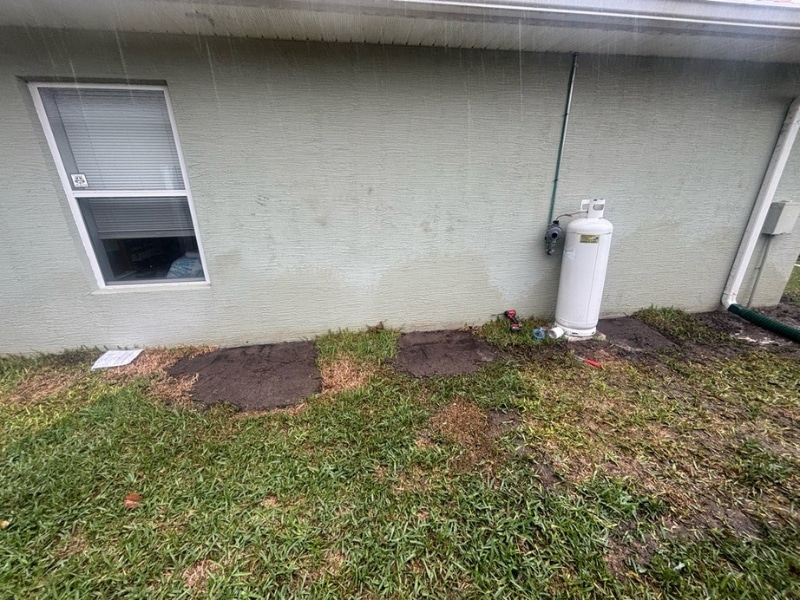

Step 3: Backfill and Site Restoration
Each excavation pit was carefully backfilled and compacted. The lawn along the west side of the home was restored as best as possible. In our experience, homeowners are always relieved to see how clean the finished site looks. The disruption during installation is temporary, but the result is permanent.

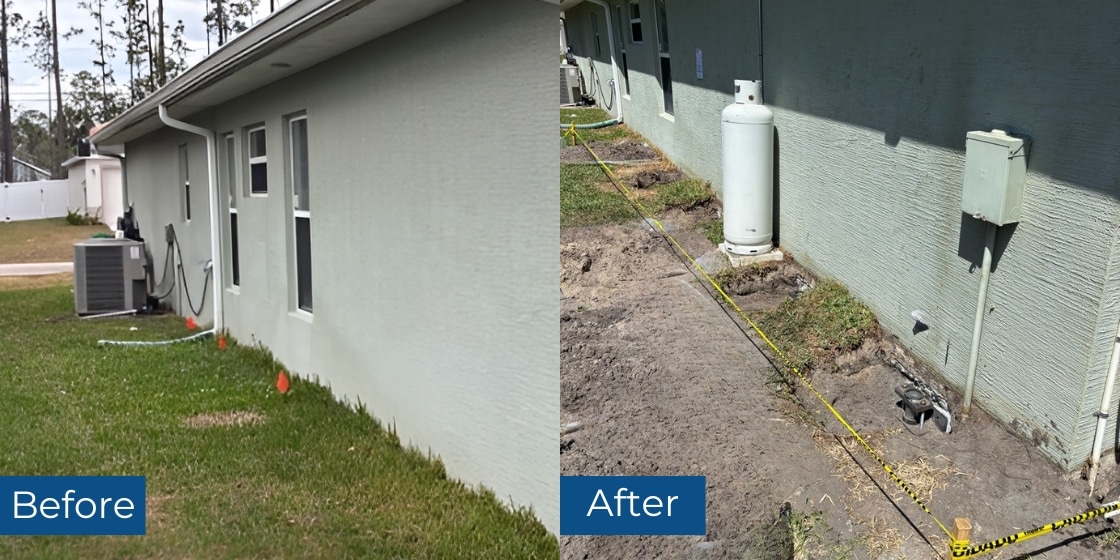

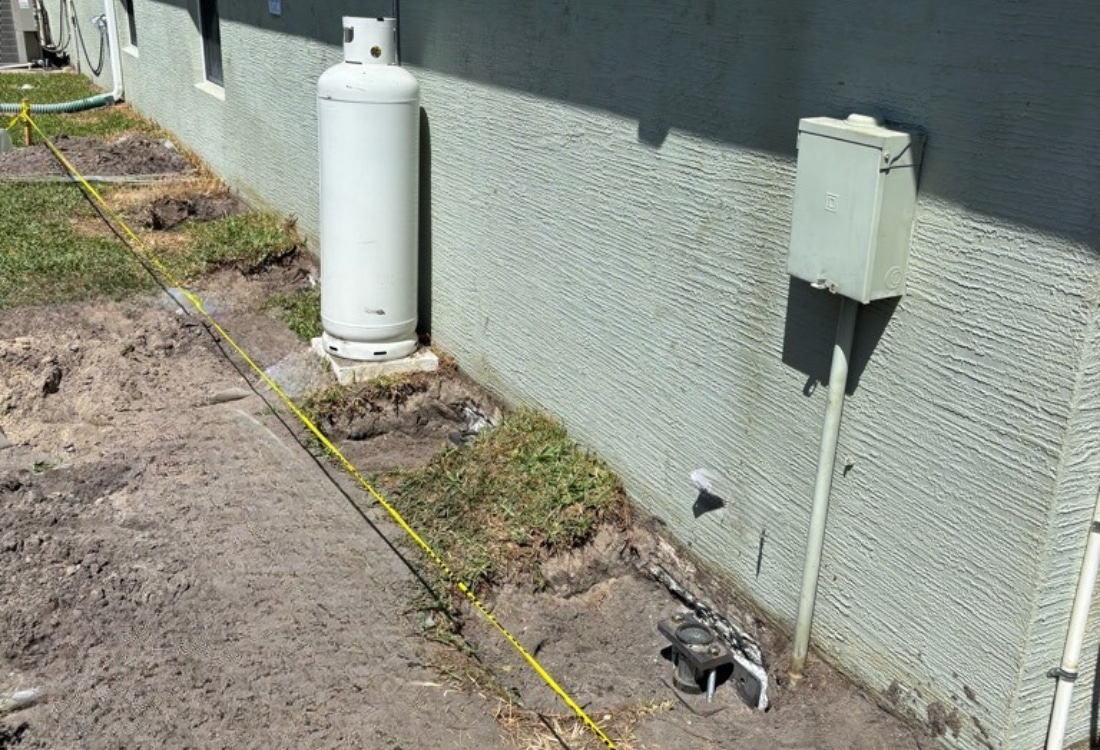

The Result: A Stabilized Foundation and Stopped Settlement in Palm Coast, FL
The completed push pier installation transferred Daniel’s foundation load from the failing sandy soil to stable load-bearing strata at depth, permanently stopping the differential settlement that had been causing the exterior wall cracks.
The results include:
✅ Six push piers installed under the footing along the west side, transferring the foundation load to stable soil.
✅ Active foundation settlement stopped, no further downward movement expected in the treated area.
✅ Exterior vertical wall cracks stabilized, no further movement occurring in the treated area.
✅ Interior ceiling crack is no longer active, and structural movement has stopped at the source.
✅ Full engineering documentation and Flagler County permits completed.
✅ Limited lifetime transferable warranty against further vertical settlement in the treated area, covering both labor and materials.
What we find in most Palm Coast push pier projects is that homeowners wait longer than they should before calling. The cracks that seem cosmetic at first are actually the structure telling you something is moving. Daniel acted at the right time before the settlement had progressed far enough to cause structural damage beyond what the piers could address.
If You’re Seeing Cracks on Your Exterior Walls, Don’t Wait Until the Cracks Get Worse
Cracks that concentrate on one side of a home, appear at window corners, or show up on the ceiling directly above an exterior wall are worth taking seriously. In our experience working on slab foundations across Florida, these patterns almost always point to foundation settlement that will continue to worsen without intervention.
LUX Foundation Solutions provides engineered push pier installation and foundation repairs across Florida and surrounding states, backed by engineering expertise and transferable warranty coverage. Our team will evaluate your specific conditions and tell you honestly what you’re dealing with.
