The Problem: Settling Historic Concrete Front Porch

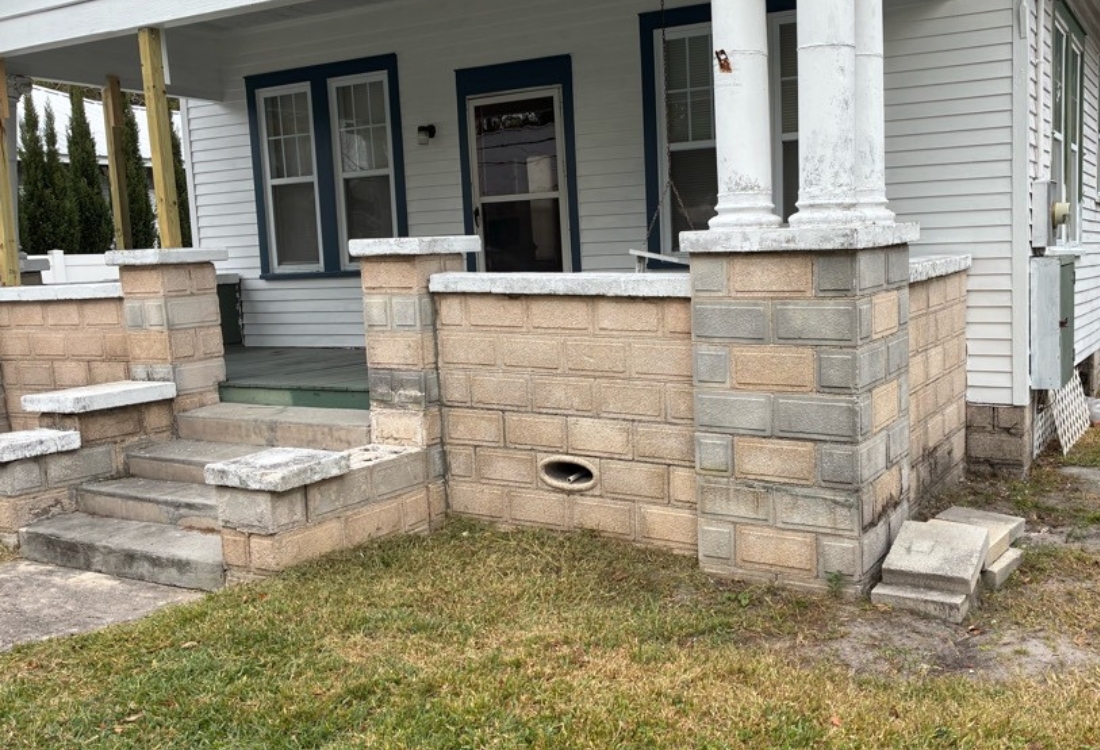

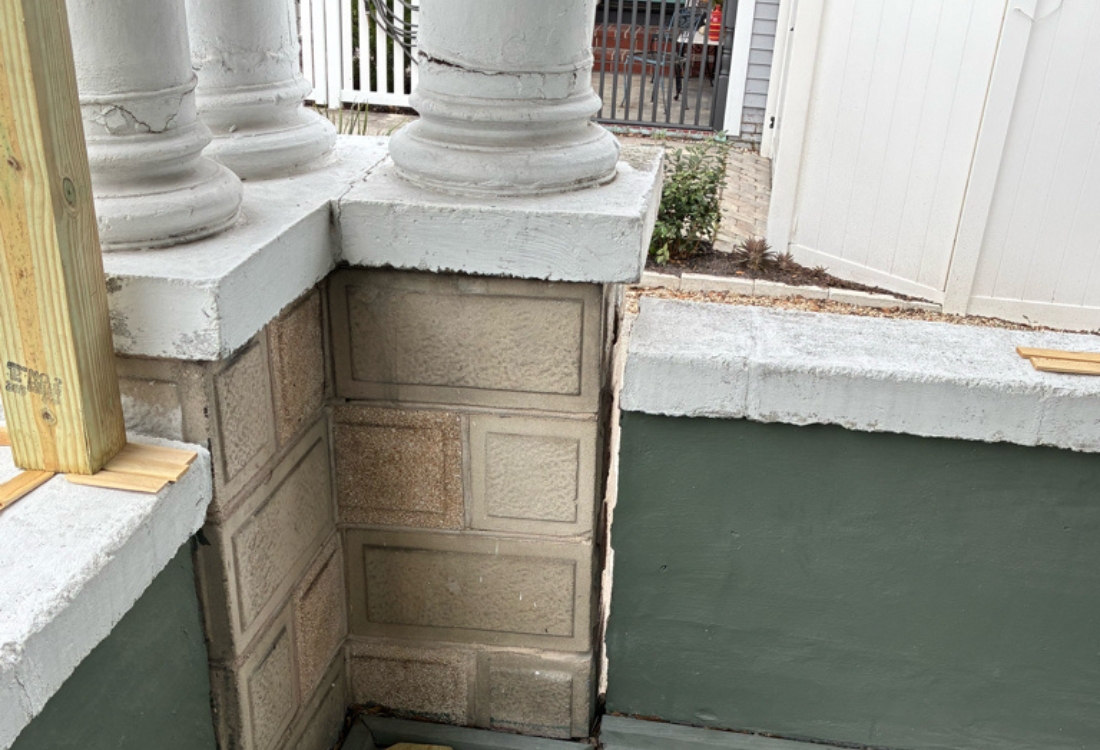

The homeowner noticed the front porch beginning to sink due to soil movement beneath the footing. Settlement caused visible separation at the porch columns and raised structural movement.
Because the property is located within St. Augustine’s historic district, maintaining the original porch construction was essential. Altering visible architectural elements could have triggered additional historical approvals from the local county building department, so the solution focused on fixing the concrete porch settlement without changing its appearance.
During our evaluation, we:
- Measured the elevation differences across the porch.
- Inspected the existing concrete footing.
- Assessed soil conditions and load-bearing points.
Our findings confirmed:
- Localized porch settlement from unstable soil.
- Structural movement at column supports.
- Risk of continued vertical displacement.
- Need for minimally invasive stabilization.
Solution: Engineered Concrete Front Porch Repair Through Helical Pier Installation
To properly execute this concrete front porch repair, we developed a deep foundation stabilization plan designed to stop settlement and restore structural alignment.
Step 1: Installation of Four Standard-Duty Helical Piers

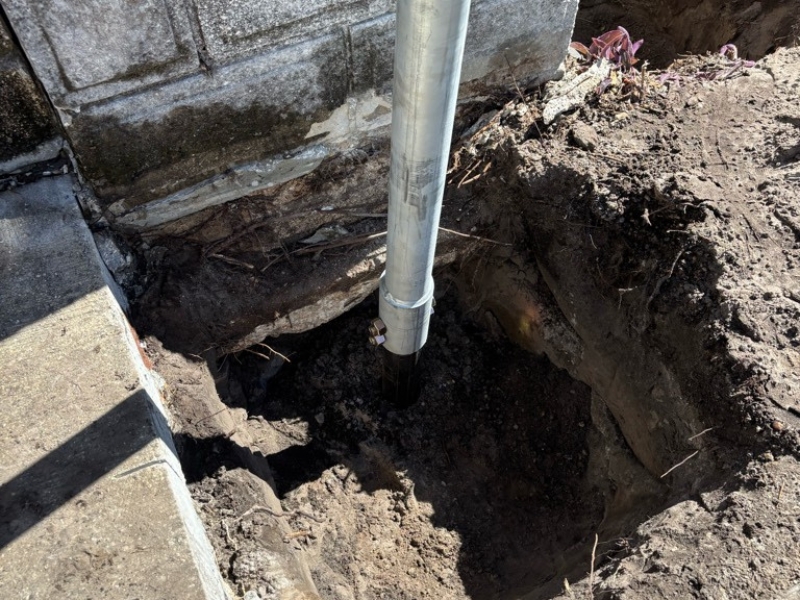

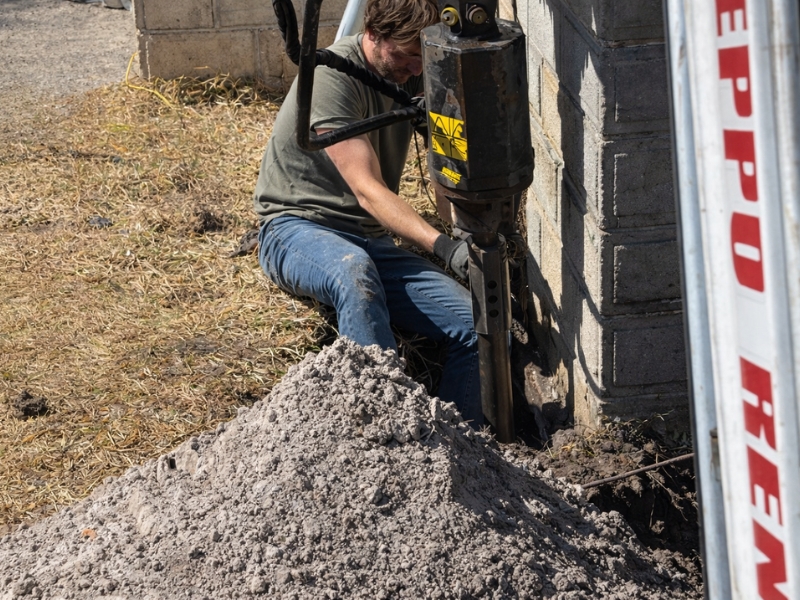

Four (4) standard-duty helical piers were strategically positioned beneath the porch footing in accordance with engineered specifications. Each pier was mechanically advanced into competent load-bearing soil layers to achieve proper installation torque.
Step 2: Bracket Installation & Load Transfer

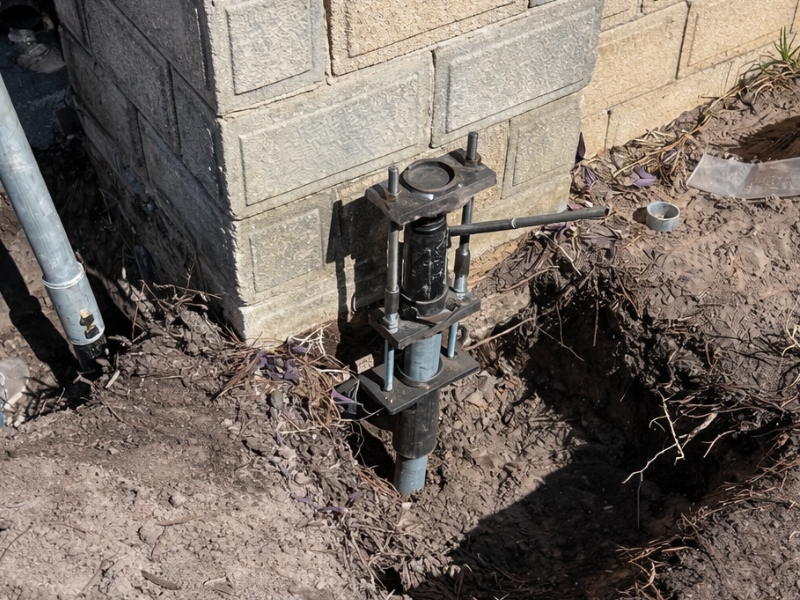

Engineered brackets were secured beneath the footing, and hydraulic equipment was used to transfer the porch weight onto the newly installed piers, beginning the foundation stabilization phase of the repair of the cracked concrete porch system.
Step 3: Load Transfer & Stabilization
After a load transfer, a controlled lift was performed. Approximately one inch of corrective elevation was achieved, improving alignment at the porch columns.
Helical piers are designed to stabilize vertical settlement by transferring structural loads to deeper, more stable soil strata.
Step 4: Soil Restoration & Final Site Finishing

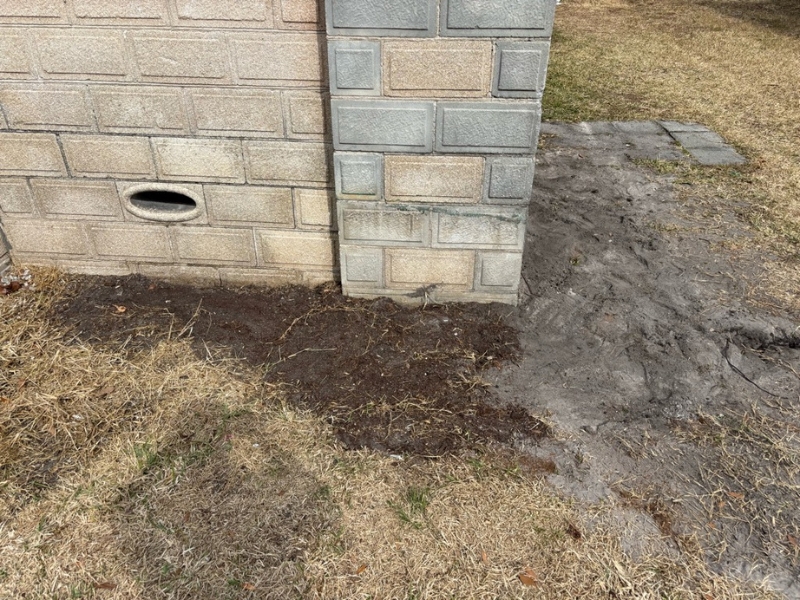

Once stabilization and lifting were complete, the excavated soil was carefully backfilled and compacted around the porch footing.
The Result: Stabilized Porch & Preserved Historic Character

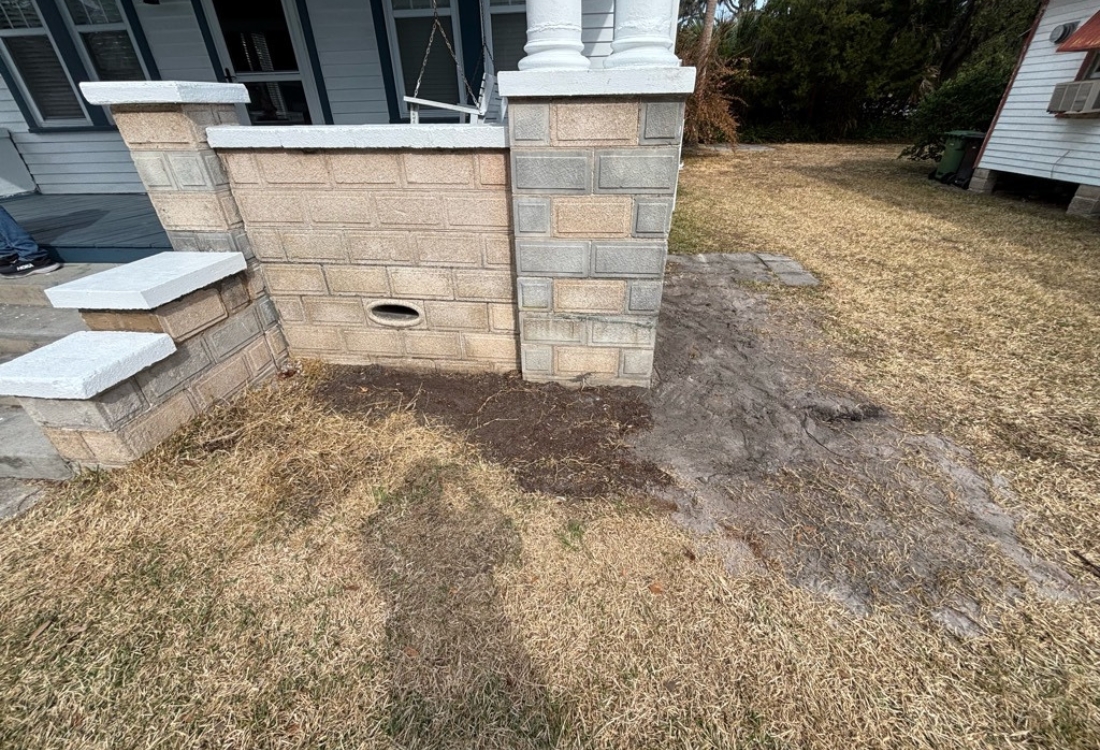

The concrete front porch repair successfully stabilized the historic entryway without altering its original appearance.
✅ Stabilized porch footing with engineered deep foundation support.
✅ Approximately 1 inch of structural lift achieved.
✅ Reduced structural movement risk.
✅ Prevention of further vertical settlement.
✅ Preservation of the original historic porch design.
✅ Engineered long-term foundation support.
✅Improved structural safety and durability.
The homeowner gained peace of mind knowing that their front porch is now structurally supported, safer, stronger, and protected for the long term without altering the historic design.
