Gazebo Wood Post Base Structural Repair in Jacksonville, FL – Reinforced Footing Upgrade

Solution: Engineered Gazebo Wood Post Base Structural Repair & Reinforced Footings

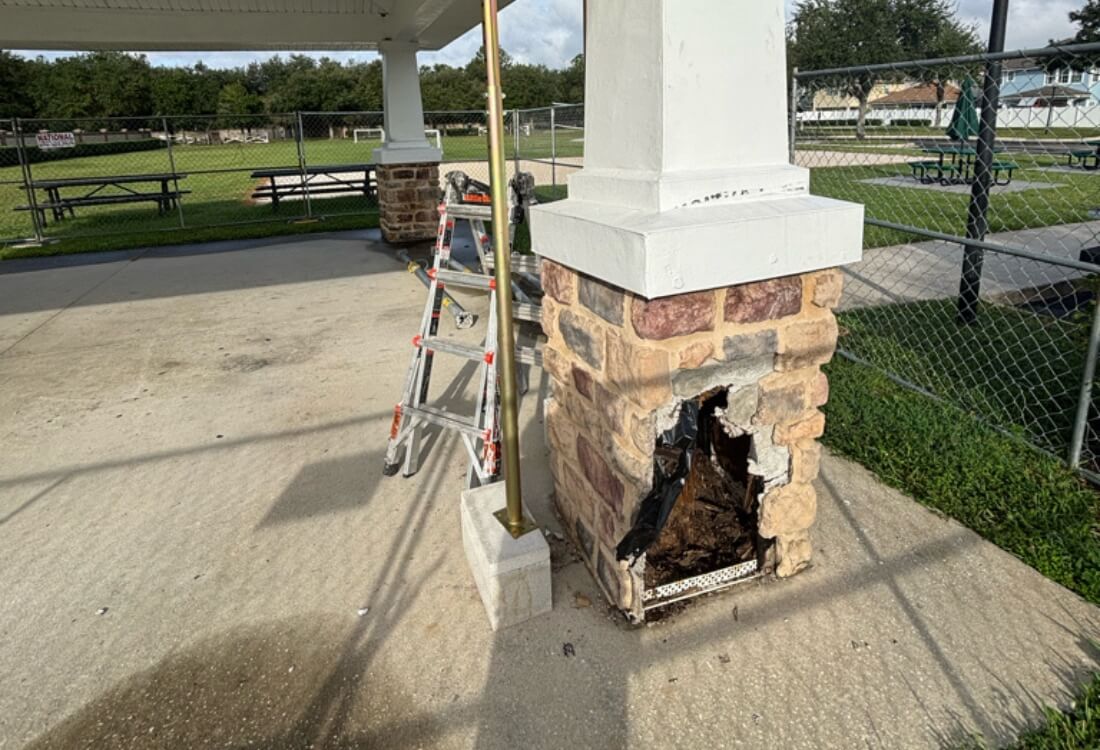

After a full evaluation, we determined that the structurally sound upper portions of the posts could remain in place. However, the deteriorated lower sections required removal and engineered reconstruction.

Here is how LUX executed the gazebo wood post structural repair properly and permanently:

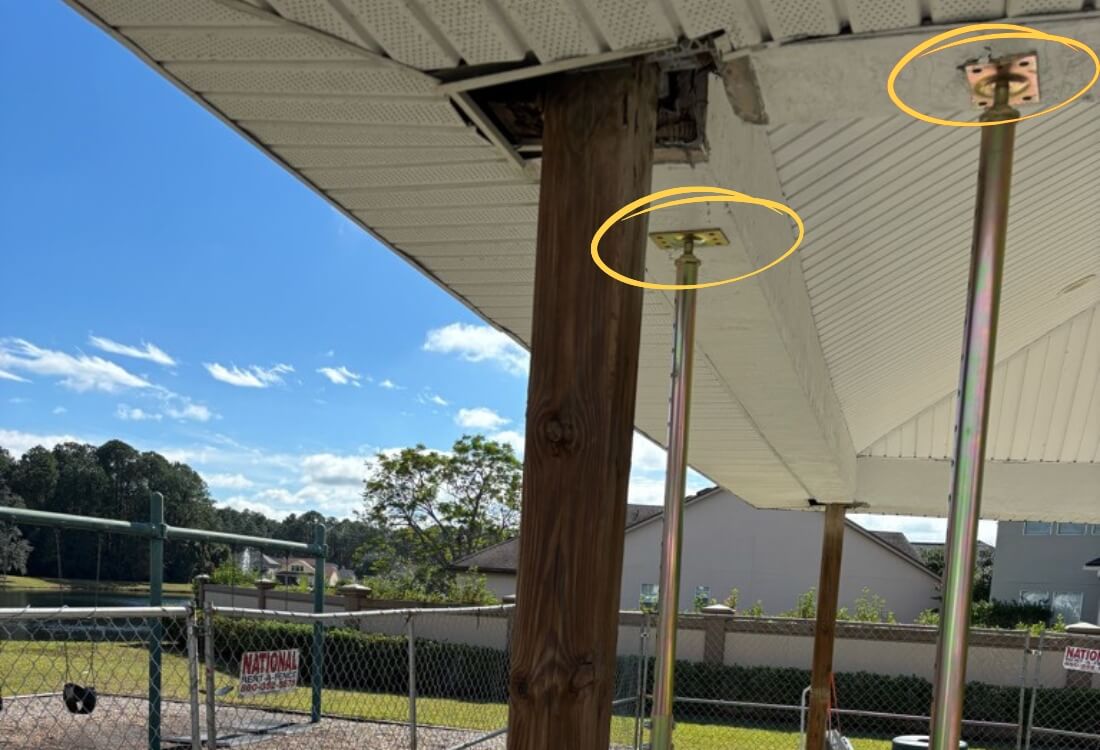

Step 1: Controlled Structural Stabilization

Before removing any compromised material, adjustable steel shoring posts were installed to safely transfer roof loads.

Temporary bracing ensured the gazebo remained stable during demolition and reconstruction.

We do not remove load-bearing components without proper structural stabilization in place.

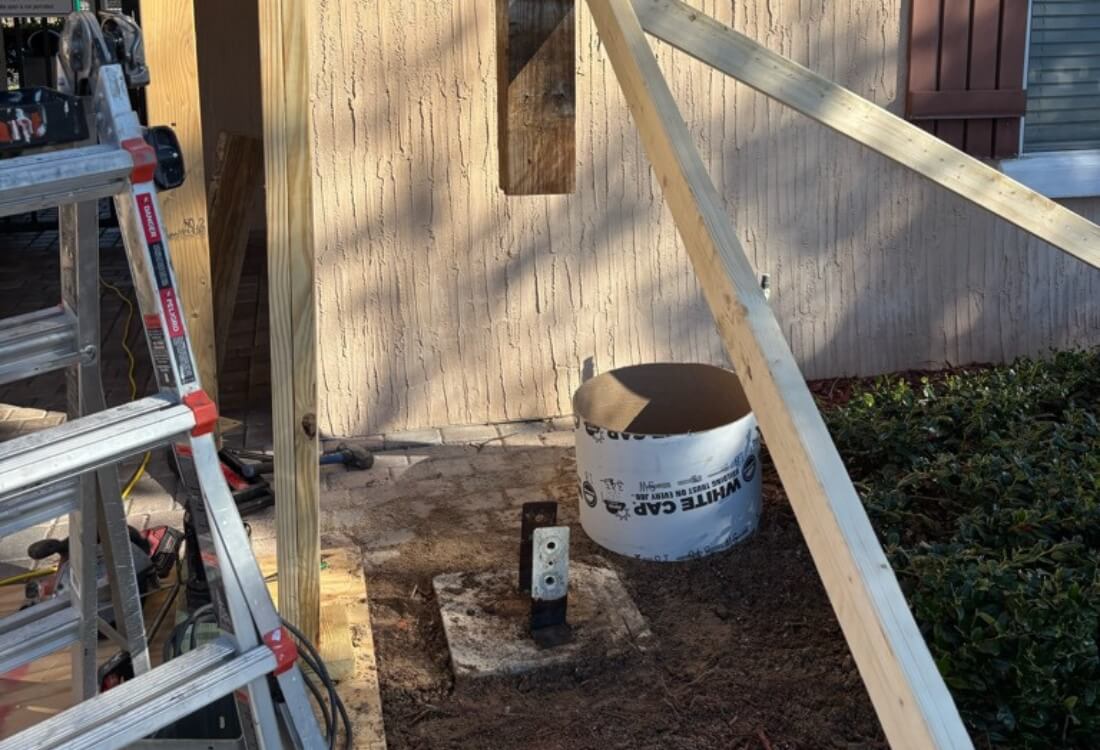

Step 2: Removal of Deteriorated Lower Post Sections

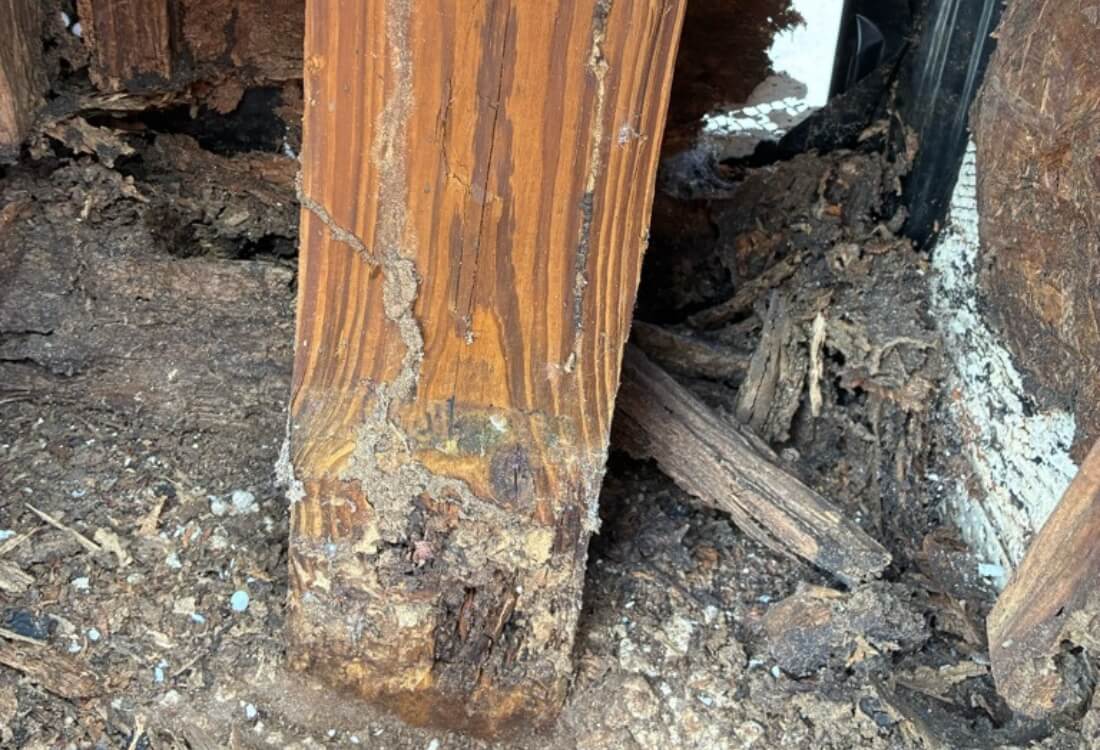

The severely rotted bottom sections of the 6”x6” posts were carefully cut and removed.

The structurally sound upper portions were retained.

This eliminated compromised material while preserving stable framing above.

During this phase:

• Electrical conduit was protected

• All damaged wood was removed

• Post heights were adjusted where required

This step prepared the structure for a reinforced base upgrade.

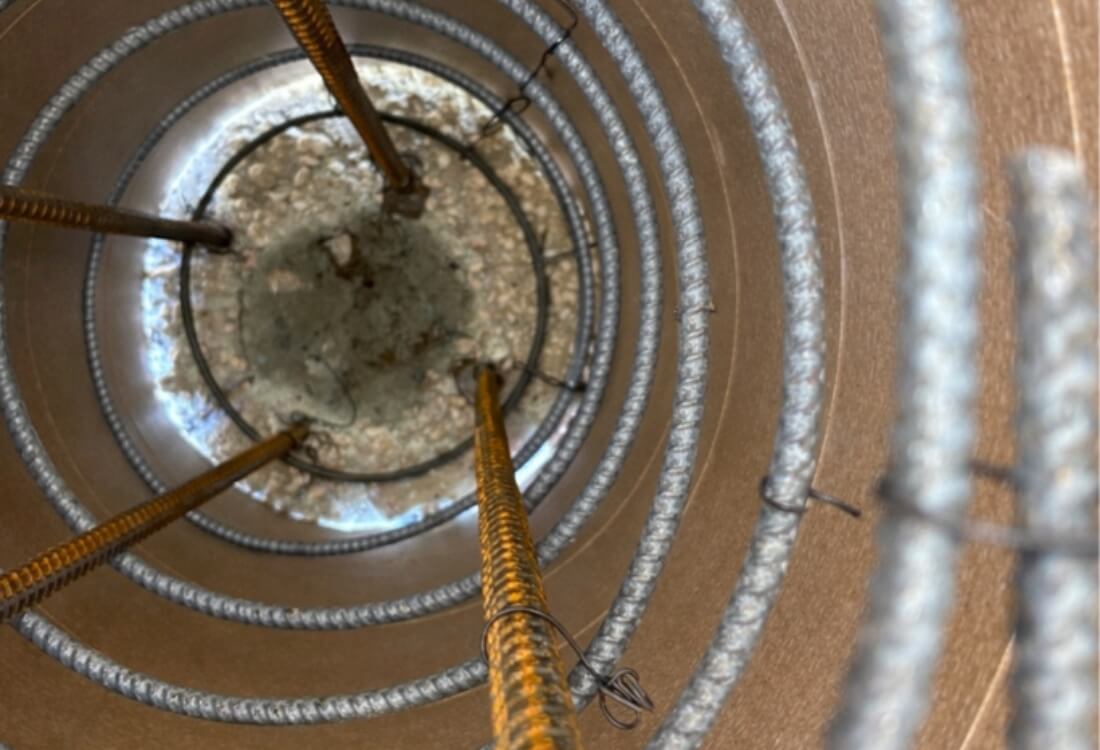

Step 3:  Sonotube Installation & Reinforced Footing Preparation

After removing the damaged sections, we prepared a new engineered footing system.

This included:

• Installing cylindrical Sonotube forms.

• Fabricating and placing reinforced rebar cages.

• Positioning vertical reinforcement bars for load transfer.

• Centering reinforcement for proper concrete coverage.

This reinforced footing design distributes structural loads properly into the ground and significantly reduces the risk of settlement.

Unlike the original installation, the repaired posts would no longer be embedded directly into concrete or exposed to ground moisture.

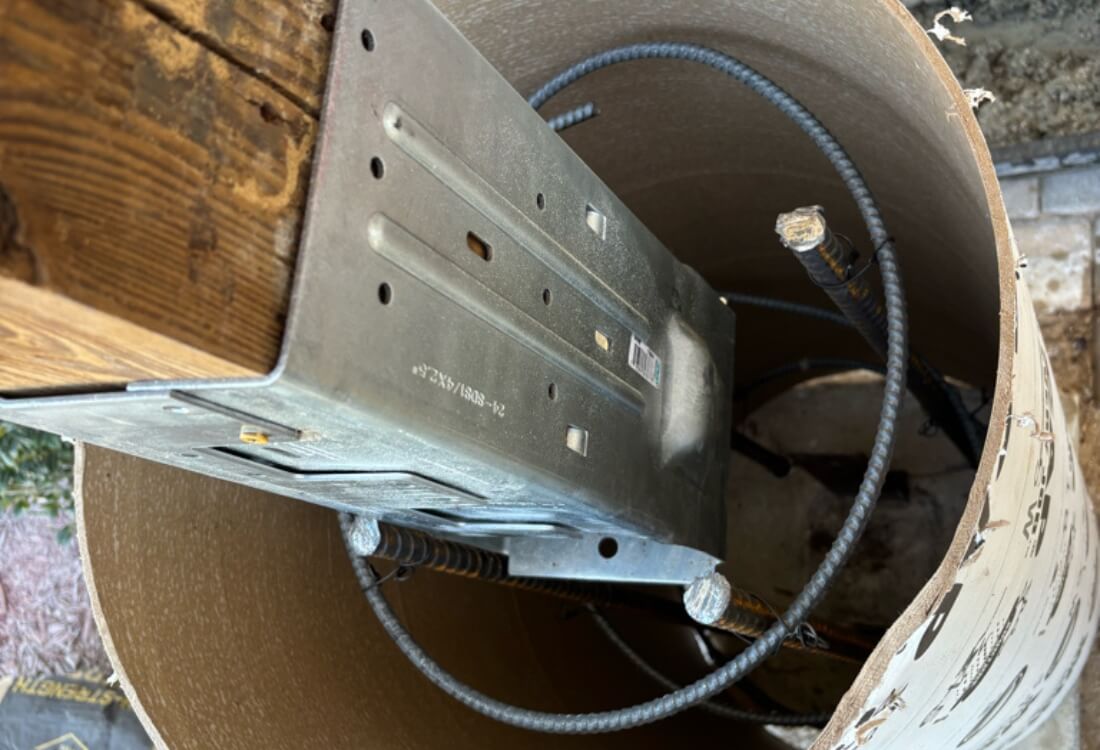

Step 4: Galvanized Uplift Bracket Retrofit & Post Re-Securing

With reinforcement in place, a heavy-duty galvanized uplift bracket was integrated into the footing system.

At this stage:

• The uplift bracket was aligned within the rebar assembly.

• The remaining upper portion of the original 6”x6” post was seated into the bracket.

• The post was carefully leveled and aligned.

• Temporary bracing was installed to maintain correct positioning.

• All hardware connections were verified prior to concrete placement.

This retrofit method creates a mechanical connection between the existing load-bearing column and the new reinforced footing.

By elevating the post base above grade and anchoring it with hardware, the repair eliminates the moisture exposure that caused the original structural deterioration and failure.

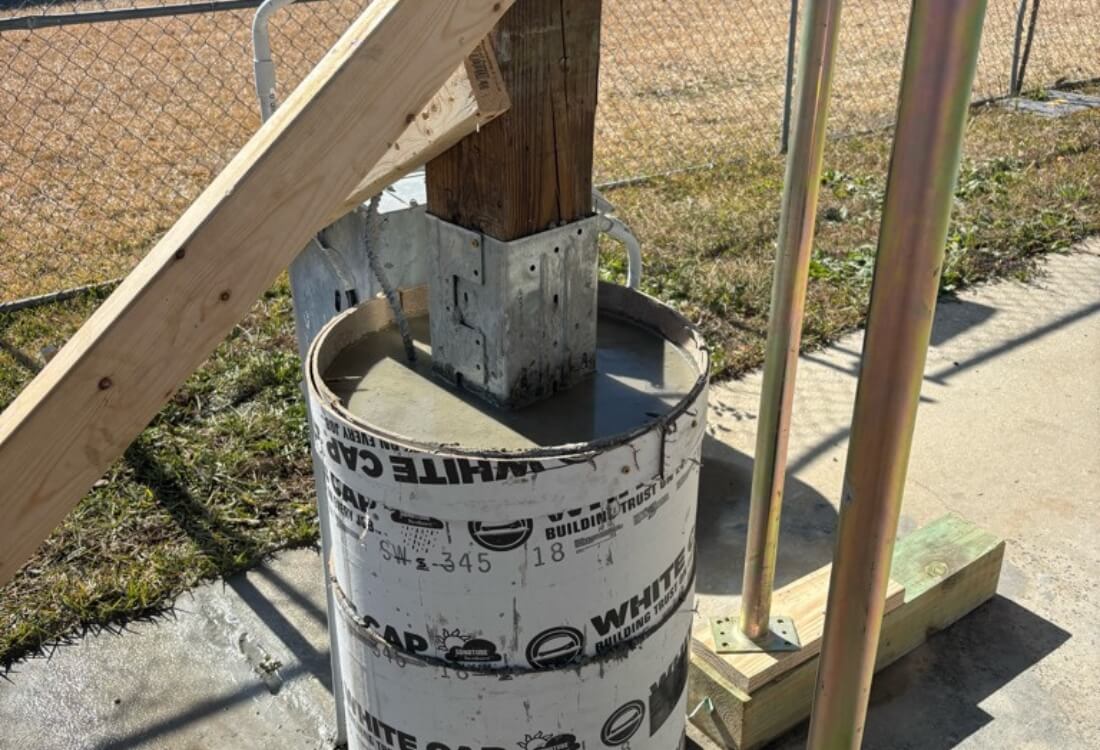

Step 5: High-Strength Concrete Placement & Elevated Post Protection

With the bracket, reinforcement, and the post properly positioned, high-strength concrete was poured into the Sonotube footing.

Concrete placement:

• Encapsulated the rebar cage

• Locked the uplift bracket into position

• Created a stable structural base

• Maintained the post base elevated above the concrete grade

The final configuration ensures:

• No direct soil contact with wood

• Reduced moisture intrusion

• Proper structural load transfer

• Increased resistance to uplift and settlement

This engineered correction directly addressed the root cause of deterioration while preserving the structurally sound portion of the original columns.

The Result: Safer, Stronger, Code-Compliant, and Engineered Gazebo
